SW-962D Precision Cleaning Swab (Polyurethane Foam Tip)

Product Overview

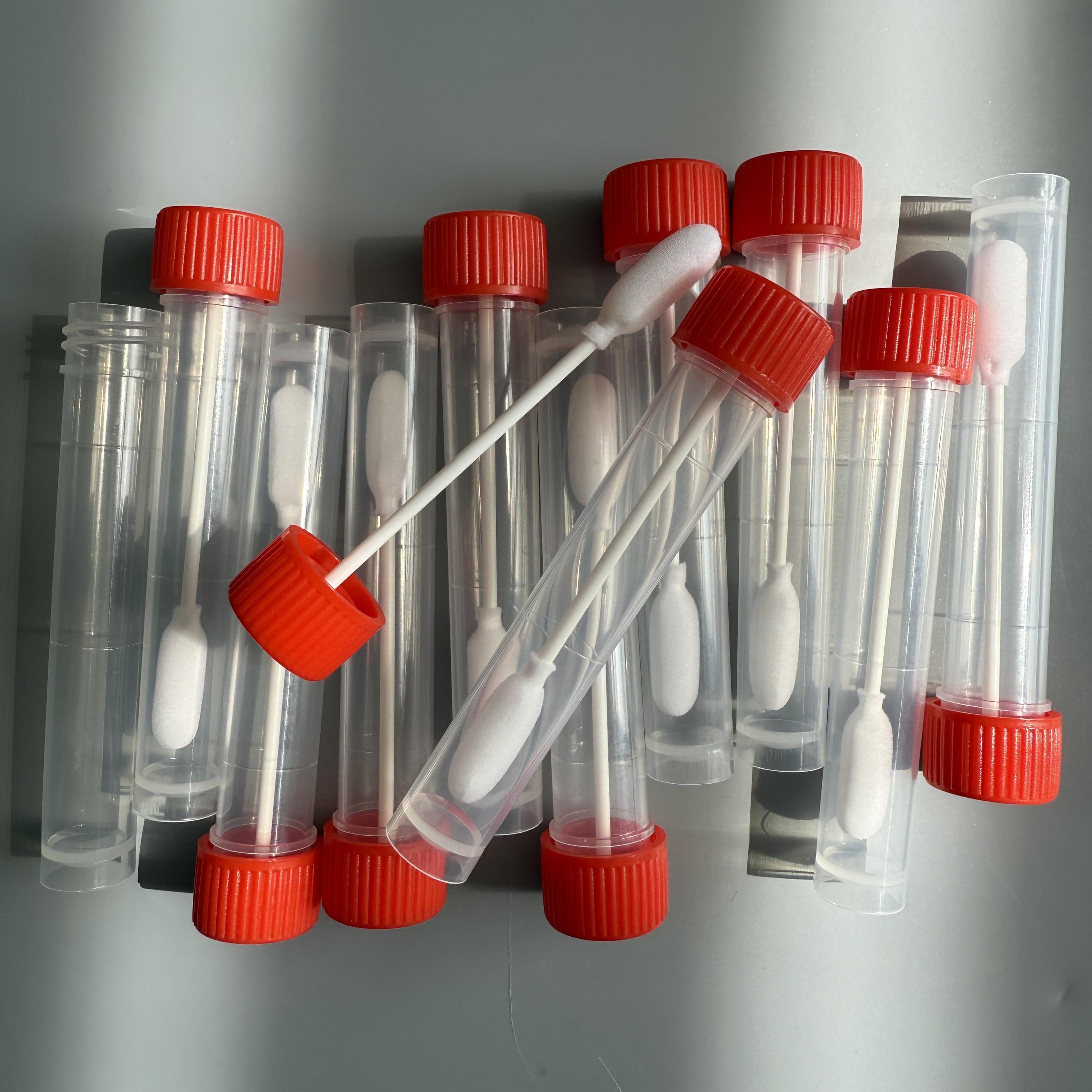

The SW-962D is a precision cleaning swab with a micro-fiber polyurethane foam head individually packaged in a sealed transparent tube, engineered for controlled-environment cleaning, liquid dispensing, and surface coating tasks in electronics assembly, optical instrument maintenance, medical device servicing, and laboratory workflows where the swab must arrive at the point of use in a provably uncontaminated and dimensionally intact condition. The transparent tube packaging — 14.8mm internal width — is the defining feature that separates the SW-962D from other foam swabs in this product line: the rigid tube protects the foam head geometry during storage and transit, preventing compression deformation that would alter the head's contact profile and absorption behavior before use, while the transparent wall allows visual inspection of the swab condition before opening without compromising the sealed-clean internal environment.

The foam head measures 25.1mm in length, 8.4mm in width, and 8.2mm in thickness. The near-square 8.4mm × 8.2mm cross-section produces a compact, high-volume foam block with strong absorption capacity per unit head length — deeper than most foam swab heads in this series — that retains a substantial liquid volume per pass for solvent application, coating deposition, and heavy residue cleaning tasks. The micro-fiber foam material combines the conformability of open-cell polyurethane foam with a surface fiber structure that provides improved particle capture compared to unmodified foam, making it effective for both surface cleaning and precise liquid application on sensitive electronic components, optical surfaces, and medical instrument contact zones.

Tube Packaging & Square Handle Construction

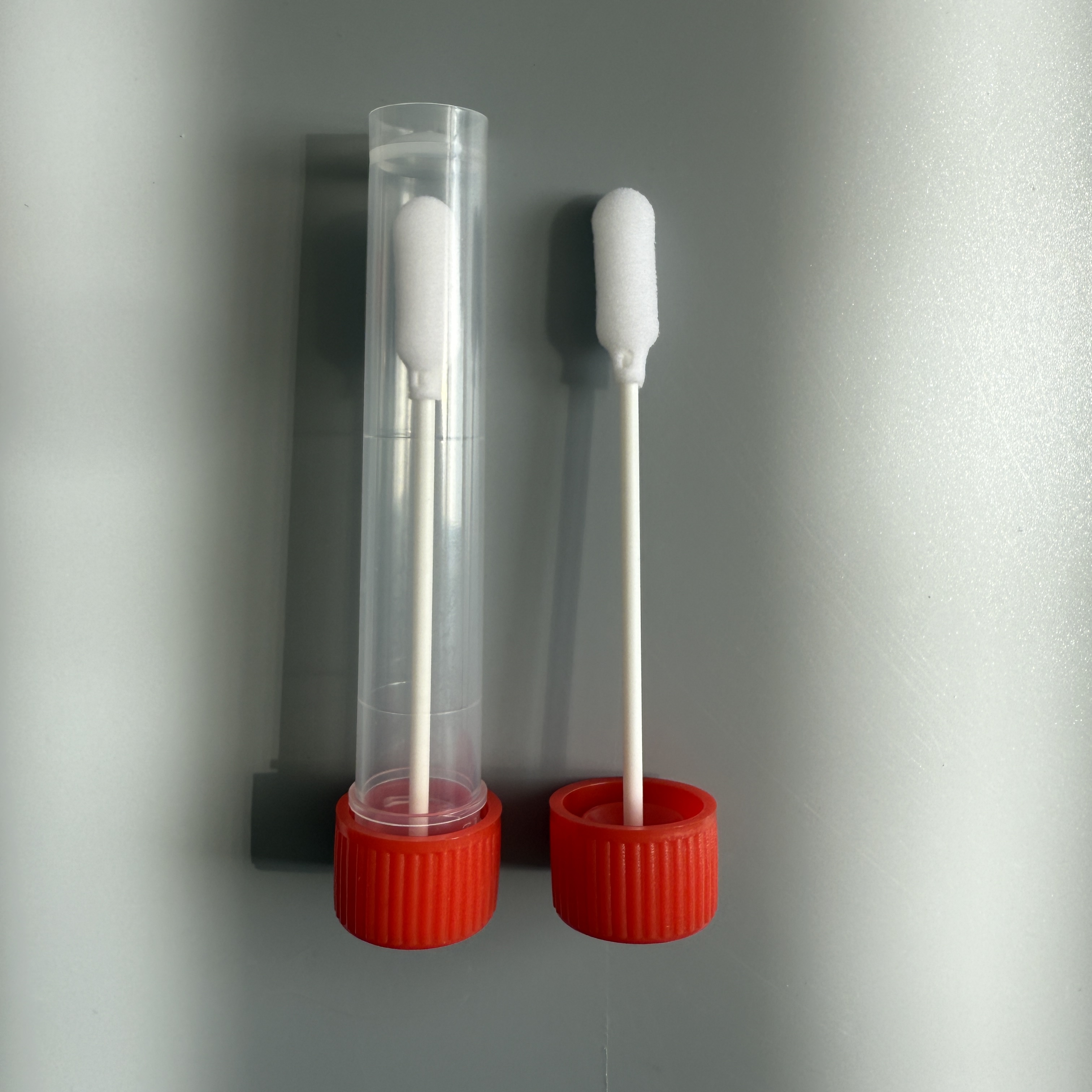

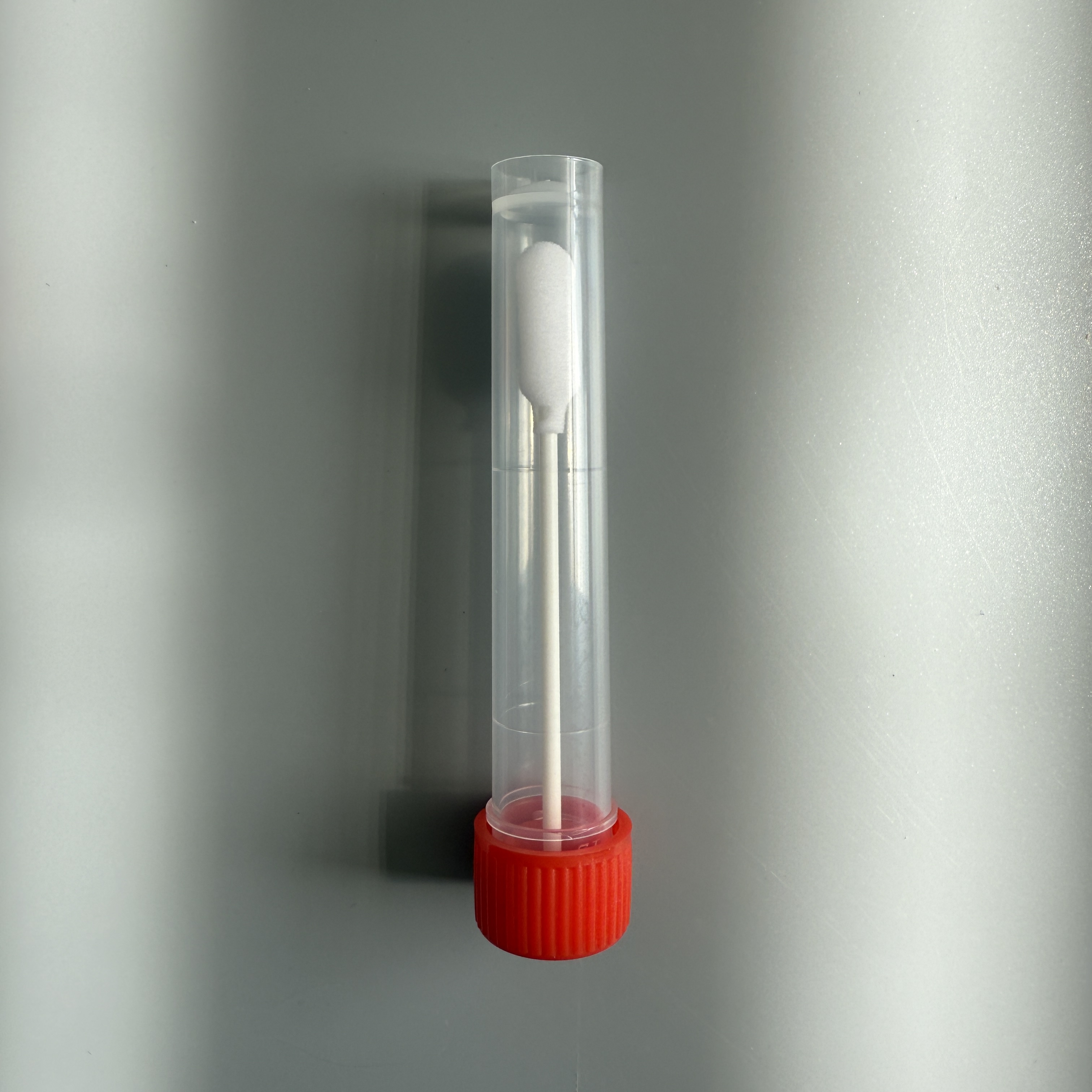

The transparent tube with 14.8mm width serves three distinct functions: contamination protection during storage and distribution, dimensional protection of the foam head geometry from compression damage, and visual quality verification before use. The tube is sealed at both ends and opens cleanly without generating packaging fragments or particles that could contaminate the swab head during extraction — a consideration that matters in cleanroom and sterile environments where packaging material particles are a controlled contamination source. The tube format also supports hygienic single-swab dispensing in clinical and laboratory environments, where the tube acts as a sterile container that can be opened immediately before use without exposing the swab to ambient air in advance.

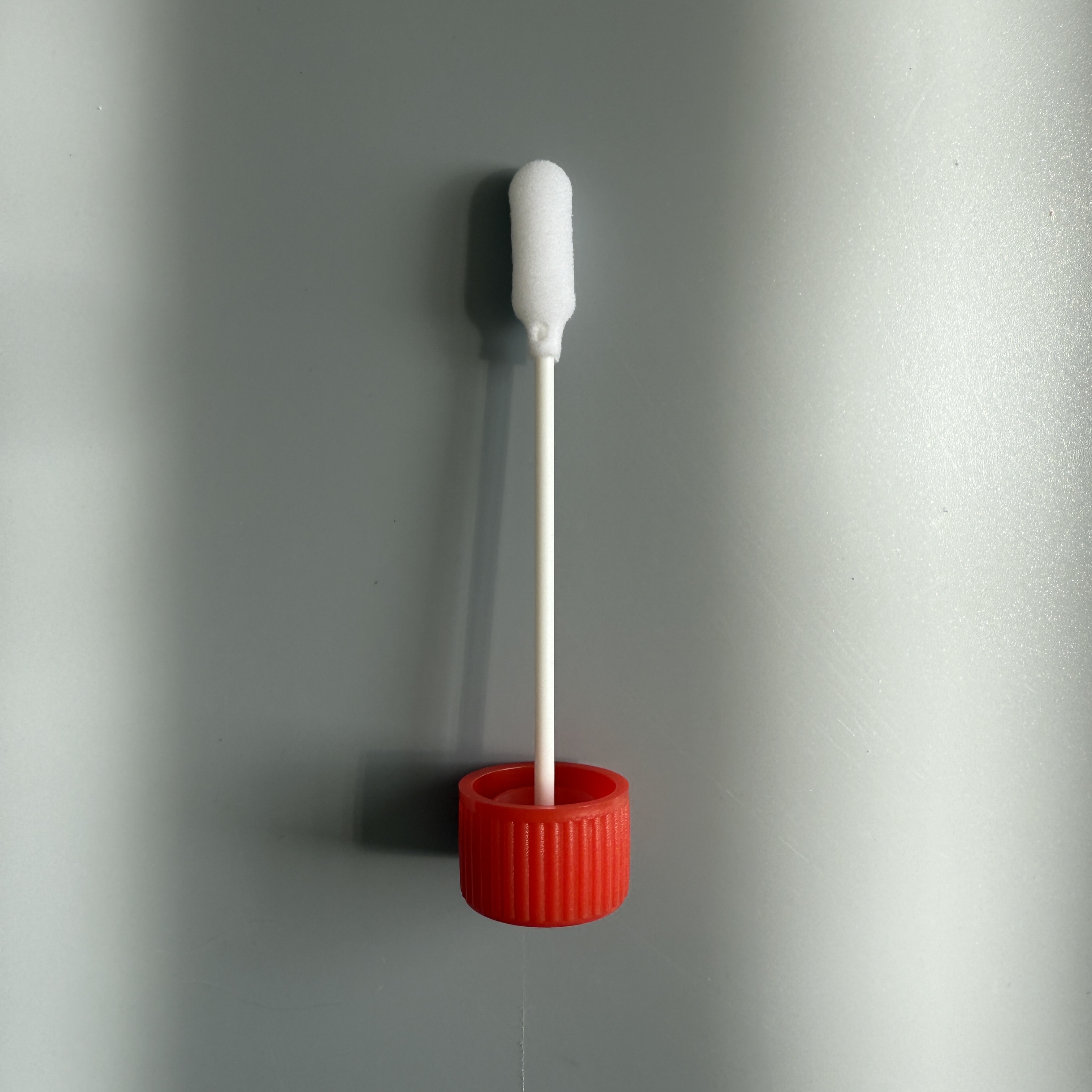

The PP handle has a square 2.5mm × 2.5mm cross-section throughout its 90mm length, providing four-sided grip stability that prevents handle rotation during the directional pressure changes of precision cleaning and liquid application tasks. The square section also resists the lateral bending that circular cross-section handles of equivalent diameter exhibit under the off-axis forces generated during scrubbing operations in confined spaces. The handle is resistant to bending and ensures stable operation at full extension into component housings and instrument cavities. Total length: 90mm. Individually packaged, 1 piece per tube.

Industry Applications & Use Scenarios

The SW-962D is used in electronics assembly and repair, laboratory sample handling, optical lens and instrument cleaning, medical device maintenance, precision model building, and cosmetic application workflows where a compact, high-volume foam head in individual hygienic tube packaging is the appropriate tool format. Specific use scenarios include applying conformal coating to defined PCB zones using the foam head as a precision applicator, cleaning optical lens and camera sensor surfaces with controlled IPA delivery through the foam's absorption-and-release mechanism, dispensing adhesive or epoxy to small-area bonding targets in electronics and model assembly, maintaining medical instrument contact surfaces between procedure cycles under sterile packaging conditions, cleaning electronic component housings and precision instrument panels, and cosmetic touch-up and product application tasks requiring a soft-contact foam applicator with hygienic individual packaging. The tube format makes it the preferred choice over bag-packed swabs in any workflow where foam head dimensional integrity before use is a process requirement, and where the visual inspection of swab condition before opening provides quality assurance value.
