SW-1052 Double-Ended Elastic Polyester Swab

Product Overview

The SW-1052 is a double-ended elastic polyester swab with two functionally differentiated polyester fiber tips at opposite ends of a single handle, designed for precision cleaning and liquid application workflows requiring sequential use of a soft, conformable tip and a firmer, more structured tip within the same task — without the interruption and contamination risk of swab replacement between steps. Unlike the SW-122C double-head swab whose two ends use the same foam material, the SW-1052's two ends are constructed from polyester fiber of different hardness characteristics: one end is soft and elastic, designed to penetrate narrow gaps and conform to complex surface geometries; the other end uses a slightly harder polyester material suited for cleaning more solid, flat surfaces where the firmer fiber contact improves residue removal through controlled friction.

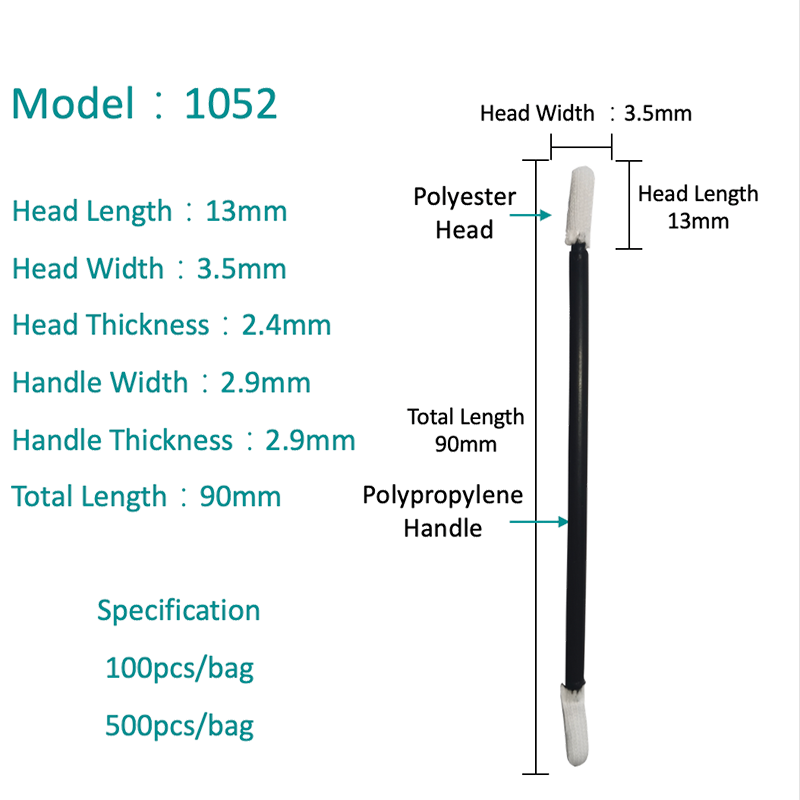

Each head measures 13mm in length, 3.5mm in width, and 2.4mm in thickness. The 13mm tip length provides cleaning stroke coverage across connector pin rows, component gaps, and instrument recess channels that shorter tips cannot fully traverse in a single pass. The elastic design of both tips ensures flexibility during use — neither end is rigid enough to fracture or deform permanently under normal cleaning pressure, maintaining tip geometry and cleaning contact area throughout the swab's operational life.

Dual-Hardness Design & Workflow Efficiency

The differentiated hardness between the two ends enables the operator to match tip stiffness to substrate requirement within a single swab tool. The soft elastic end accesses narrow gaps, complex structures, and curved recesses — connector interiors, through-hole component leads, watch movement cavities — where a harder tip would apply localized pressure that risks lead deformation or surface marking. The harder end then addresses the flat, smooth, or solid surfaces adjacent to or surrounding the same component — contact pad areas, flat instrument panels, bearing race surfaces — where the slightly firmer fiber delivers more consistent cleaning pressure per stroke and removes dried deposits more effectively than a fully elastic tip under equivalent hand force.

Both ends provide good liquid absorption and even solvent release, supporting wet cleaning steps with IPA and other solvents in addition to dry particulate removal tasks. The polypropylene handle measures 90mm in total length with 2.9mm width and thickness — a square cross-section that prevents handle rotation between fingers during the directional force changes of tip-switching operations. Package contains 100 pieces.

Industry Applications & Use Scenarios

The SW-1052 is used in electronics component maintenance, precision instrument cleaning, optical equipment servicing, watchmaking and clock repair, laboratory workflows, and home workshop DIY applications where a single cleaning task requires sequential access to both confined recesses and open flat surfaces. Specific use scenarios include cleaning electronic connector assemblies where the pin recess interior needs the soft elastic end and the connector housing face uses the harder end, maintaining watch movement components where pivot points require the conformable soft tip and flat bridges use the firmer end, applying solvent to optical instrument cavities with the soft tip and wiping the surrounding optical surfaces with the harder tip, and laboratory instrument maintenance tasks combining hard-to-reach cavity cleaning with adjacent flat surface preparation in a single uninterrupted workflow. The 90mm handle format is suited to close-range bench work and home DIY use where extended handles reduce control precision.
