SW-863 General Purpose Rectangular Head Polyester Swab

Product Overview

The SW-863 is a general-purpose rectangular head polyester swab with a wide knitted polyester fiber head designed for efficient surface coverage across flat component panels, equipment housing interiors, and large substrate areas in both industrial maintenance and precision cleaning workflows. The rectangular head geometry maximizes the wiping surface area per stroke relative to handle width, making it one of the most coverage-efficient configurations in the polyester swab series for flat-surface cleaning tasks. The 11.3mm head width positions the SW-863 between narrower precision-tip polyester swabs and the wider SW-864 series: it provides broader coverage than 6.8mm heads for faster large-area cleaning while remaining narrower than the 14.5mm SW-864B, allowing access to component zones where the wider head would contact adjacent structures.

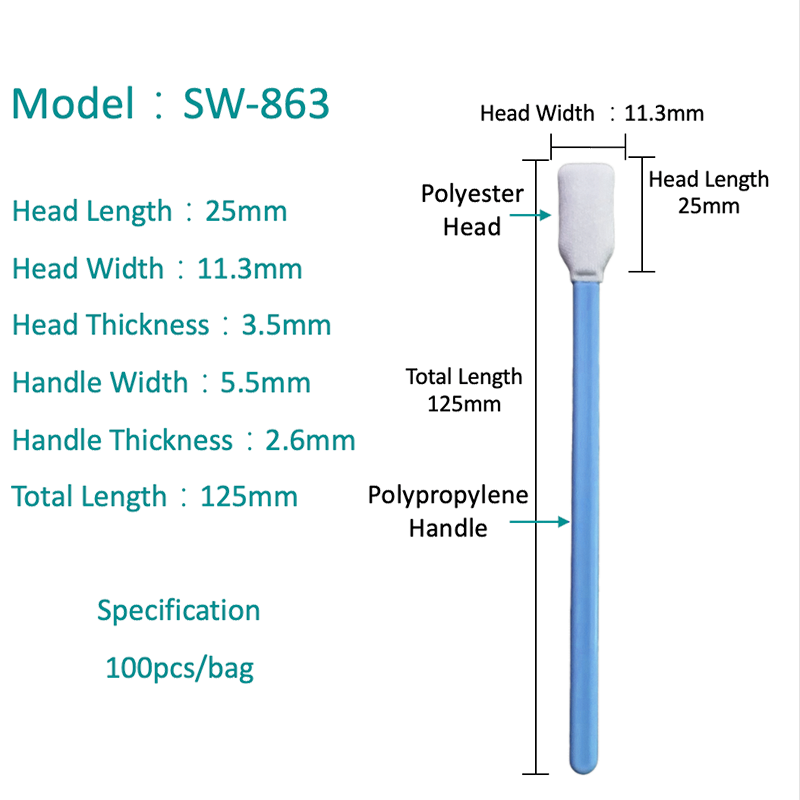

The swab head measures 25mm in length, 11.3mm in width, and 3.5mm in thickness. The 25mm head length is the longest in the standard polyester swab range, providing maximum single-pass coverage along the cleaning direction. High-quality polyester fiber gives the head good moisture absorption and wear resistance across repeated use cycles with both solvent-based and water-based cleaning agents. The fiber construction is lint-free, maintaining low particle generation throughout the cleaning stroke and leaving no fiber residue on cleaned optical surfaces, electronic component contacts, or precision instrument panels.

Coverage Efficiency & Surface Conformity

The rectangular head profile maintains full-width contact across flat substrate surfaces during the wiping stroke, applying even pressure distribution along the entire 11.3mm head width rather than concentrating force at a central point as curved or rounded heads do. This pressure uniformity is relevant for flat panel cleaning, circuit board surface preparation, and instrument panel wipe-downs where consistent coverage across the full wiping path determines residue removal completeness. The polyester fiber is firm enough to provide the controlled scrubbing action needed to dislodge partially dried contaminants and surface deposits that light-pressure foam wiping leaves behind, while remaining non-abrasive on coated and polished surfaces under normal operating pressure.

The polypropylene handle measures 125mm in total length with 5.5mm width and 2.6mm thickness. The 5.5mm wide handle provides a broad grip surface that distributes hand pressure evenly during extended wiping sessions — a relevant ergonomic consideration for production line operators performing repetitive cleaning across high volumes of components. The handle material does not absorb solvents and maintains structural integrity under the cleaning agent concentrations used in standard industrial and precision maintenance operations. Package contains 100 pieces.

Industry Applications & Use Scenarios

The SW-863 is used across industrial equipment maintenance, PCB manufacturing, home appliance servicing, electronics housing cleaning, and production line surface preparation tasks where a wide rectangular polyester head delivers coverage efficiency that narrow-tip alternatives cannot match. Specific use scenarios include wiping flat circuit board surfaces between assembly stages, cleaning equipment panel surfaces before labeling or inspection, removing dust and light surface contaminants from display device exteriors, performing pre-assembly surface preparation on flat metal and plastic components, cleaning optical flat glass surfaces before measurement, and general maintenance cleaning of production equipment contact surfaces. For procurement teams evaluating the SW-863 against the SW-864B, the key selection criterion is access width: if the target cleaning zone is 12–14mm or wider, the SW-864B delivers more coverage per pass; if the target zone is narrower than 13mm or bordered by adjacent structures within that margin, the SW-863's 11.3mm width is the appropriate choice.
