SW-864B Laser edge banding square Polyester Swab

Product Overview

The SW-864B is a square head polyester swab with a wide knitted polyester fiber head featuring laser-finished edge sealing, designed for large-area flat surface cleaning in precision electronics manufacturing, optical component preparation, and laser cutting and edge processing workflows. The "laser edge banding" designation refers to two distinct characteristics: the swab head's edge perimeter is finished using laser thermal sealing technology that fuses polyester fiber ends at the cut line — preventing fiber shedding during cleaning contact — and the swab is purpose-built for cleaning debris and residues generated in laser cutting and laser edge banding operations on panel and furniture manufacturing lines.

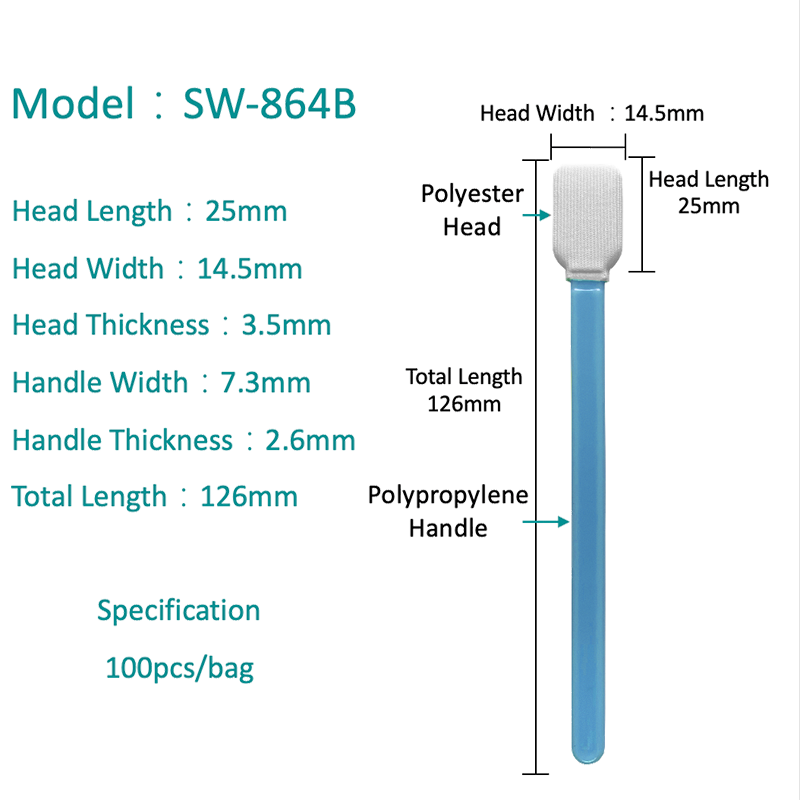

The swab head measures 25mm in length, 14.5mm in width, and 3.5mm in thickness — the widest polyester head in this product series at 14.5mm, providing the largest single-stroke coverage area of any standard polyester swab in this line. The square profile makes full-width contact across flat substrates without the edge-bridging that narrower heads exhibit on wide panel surfaces, ensuring residue removal extends to the full width of the wiping path rather than leaving thin uncontacted strips along the head margin. The 3.5mm foam thickness provides sufficient fiber volume for high liquid absorption per pass, suited to cleaning tasks involving moderate to heavy debris loads from laser-generated polymer smoke, carbonized material, and fine cutting particulates.

Laser-Sealed Edges & Chemical Compatibility

The laser-finished edge sealing thermally fuses the polyester fabric perimeter, eliminating the loose fiber ends that mechanically-cut swab edges present and which shed particles onto cleaned surfaces during wiping. This edge quality is particularly important for the SW-864B's wide 14.5mm head: a wider head creates a longer perimeter edge compared to narrow-head swabs, meaning more potential fiber release sites if the edges are not properly sealed. The laser finishing process closes these sites across the full head perimeter, ensuring no fiber residue is left on cleaned surfaces regardless of the lateral wiping direction used.

The high-quality polyester fiber demonstrates excellent moisture absorption and decontamination capability, rapidly removing debris and residue deposits generated by laser processing while maintaining good chemical compatibility with cleaning agents used in laser cutting maintenance — including IPA, solvent-based cleaners, and commercial formulations used on HOMAG, IMA, and Biesse laser edge banding platforms. The polypropylene handle is 126mm in total length with 7.3mm width and 2.6mm thickness — the widest handle in the polyester swab series, providing a stable palm grip suited to the moderate lateral force required for debris removal on machine channel surfaces. Package contains 100 pieces.

Industry Applications & Use Scenarios

The SW-864B is used in laser cutting machine maintenance, laser edge banding production line servicing, semiconductor manufacturing, PCB assembly, optical component cleaning, and flat-panel surface preparation. Specific use scenarios include removing polymer smoke and carbonized debris from laser machine pressure roller surfaces and optical housings, wiping large flat substrate areas in electronics manufacturing before inspection, cleaning display panel surfaces during assembly quality control, performing pre-bonding surface preparation on wide flat components, and maintaining cutting equipment contact surfaces in furniture and panel manufacturing operations. As the widest head in this series, it is the appropriate choice when single-pass full-width coverage of a flat zone wider than 13.5mm is the primary operational objective.
