SW-836B Precision Laser Polyester Swab

Product Overview

The SW-836B is a precision laser polyester swab with a laser-cut knitted polyester fiber head whose edge profile and internal fiber arrangement are controlled by CO₂ laser processing rather than mechanical die-cutting or scissors trimming — a manufacturing distinction that directly determines the contamination risk the swab presents at the point of use. When polyester fabric is cut mechanically, the shearing action fractures fibers at the cut edge, leaving broken fiber ends that shed particles during cleaning contact. Laser cutting vaporizes the polyester along the cut line and simultaneously seals the edge through localized thermal fusion, producing a sealed, fray-free perimeter from which no loose fibers can release — even under the lateral scrubbing forces applied in precision component cleaning tasks.

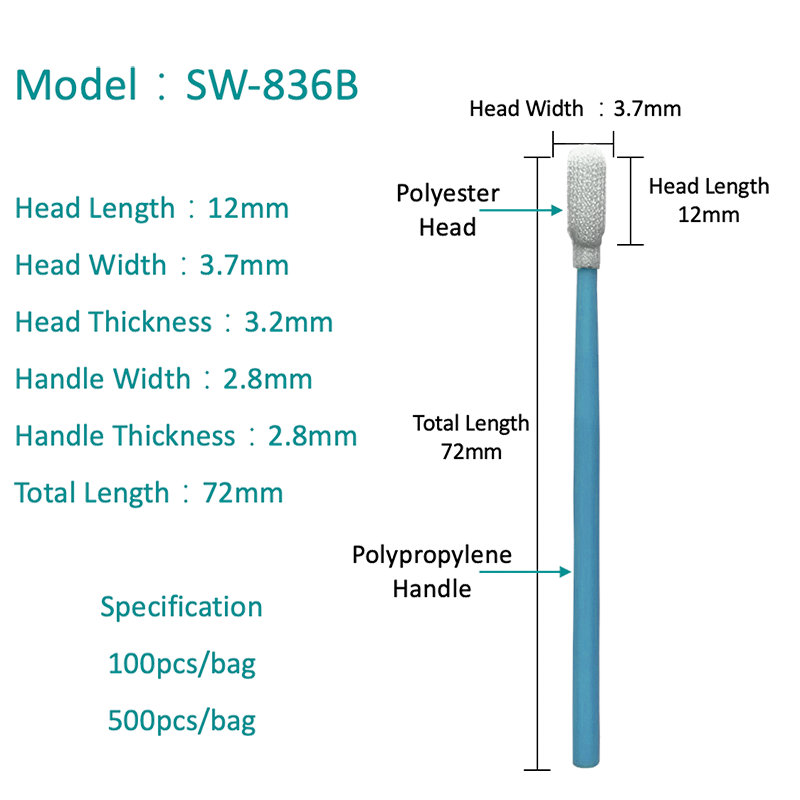

The swab head measures 12mm in length, 3.7mm in width, and 3.2mm in thickness. The 3.7mm width is marginally wider than the 3.2mm tips found on most pointed polyester swabs in this series, providing a slightly larger contact face that covers more surface area per stroke while still fitting within standard connector housings and component gap widths. The laser-defined fiber structure maintains consistent head geometry across production batches, ensuring dimensional repeatability that mechanically-cut swabs cannot reliably achieve at this scale.

Laser Edge Processing & Fiber Arrangement

The fiber arrangement within the SW-836B head has been carefully engineered to maintain inter-fiber gaps that prevent clogging during cleaning tasks involving viscous residues, dried flux deposits, or particulate-laden solvents. Standard tightly-woven polyester swabs can become clogged when fine particles pack into the fiber matrix during scrubbing, reducing absorption performance mid-task and requiring swab replacement before the cleaning area is fully processed. The SW-836B's controlled fiber spacing allows contaminated solvent to penetrate into the fiber body and be held there, while fresh fiber surface remains exposed at the head exterior for continued cleaning contact.

The high-strength polyester handle rod provides stable structural support during precision scrubbing operations and resists deformation under the lateral force applied during hard-to-reach area cleaning passes. Combined with the laser-sealed head, the swab generates no fiber residue and no chemical deposits on cleaned surfaces — meeting the cleanliness requirements of semiconductor component cleaning and precision instrument maintenance workflows. Handle dimensions are 72mm total length with 2.8mm width and thickness. Package contains 100 pieces in small packs, 500 pieces in large packs.

Industry Applications & Use Scenarios

The SW-836B is used in semiconductor manufacturing, precision instrument maintenance, optical component cleaning, PCB assembly inspection, and high-cleanliness electronics servicing workflows where the fiber integrity and edge quality of the swab head are process-critical parameters — not merely product quality attributes. Specific use scenarios include cleaning bond pad arrays on semiconductor packages where fiber contamination on a pad causes wire bond failure, removing flux residue from fine-pitch SMT component footprints during PCB rework, cleaning optical fiber connector end-faces before insertion loss measurement, accessing pin gaps in high-density connector assemblies without fiber shedding, and performing surface wipe-down in ISO Class 5–6 semiconductor cleanroom environments where particle counts at the workstation are actively monitored. The laser-cut edge sealing distinguishes this model from mechanically-trimmed polyester swabs in applications where fiber shedding events are traceable defect sources in the production process.
